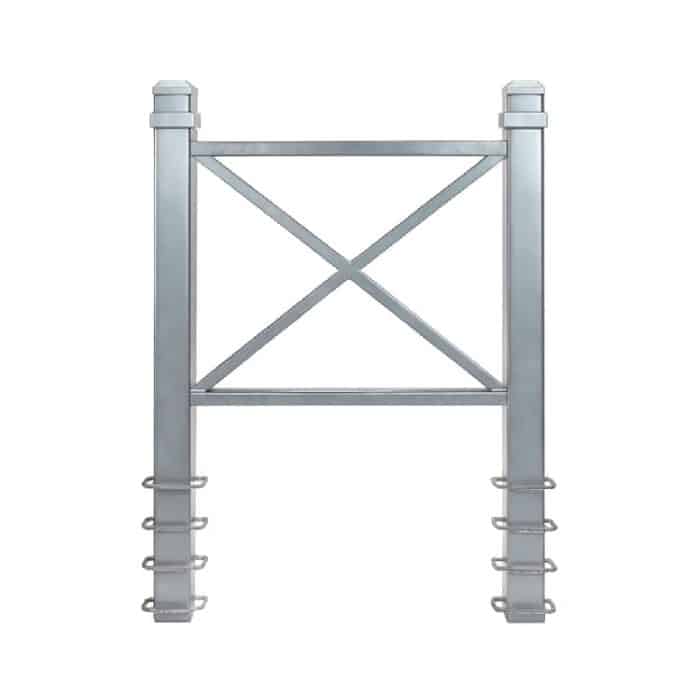

SafetyX X-Frame 60″ X 72″ ASTM F-3016 S20 Bollard

The SafetyX X-Frame bollard is engineered to provide reliable storefront and pedestrian protection without compromising on design. Tested to ASTM F3016 S20 standards, it is certified to stop a 5,000 lb vehicle traveling at 20 mph when properly installed. The 60″ × 72″ frame delivers effective impact resistance in a compact and architectural form.

Constructed from structural steel, the bollard features welded square uprights and an internal X-frame for strength and stability. Available in Hot Dip Galvanized or Powder Coat Silver, with other finishes available to match project requirements. Its open-frame design maintains sightlines and blends seamlessly with building façades, making it ideal for urban and retail environments.

Installation involves a reinforced cast-in-place concrete footing with a 5,000 psi mix, ensuring consistent crash performance in service. Suitable for both new construction and retrofit applications, the SafetyX X-Frame provides an effective balance of safety, durability, and architectural appeal, protecting people and property in high-traffic areas.
